Tidy data

PSTAT100 Spring 2023

Invalid Date

Announcements

  • PDF export fixed on JupyterHub
  • Lab 0 due today 11:59PM; late submissions allowed until Wednesday 11:59PM
  • Complete Q1-Q4 (fruit_info section) of Lab 1 before section

This week

  • Tabular data
    • Many ways to structure a dataset
    • Few organizational constraints ‘in the wild’
  • Principles of tidy data: matching semantics with structure
    • Data semantics: observations and variables
    • Tabular structure: rows and columns
    • The tidy standard
    • Common messes
    • Tidying operations
  • Transforming data frames
    • Subsetting (slicing and filtering)
    • Derived variables
    • Aggregation and summary statistics

Tabular data

  • Many possible layouts for tabular data
  • ‘Real’ datasets have few organizational constraints

Most data are stored in tables, but there are always multiple possible tabular layouts for the same underlying data.

Let’s look at some examples.

Mammal data: long layouts

Below is the Allison 1976 mammal brain-body weight dataset from last time shown in two ‘long’ layouts:

body_wt brain_wt
species
Africanelephant 6654.0 5712.0
Africangiantpouchedrat 1.0 6.6
measurement weight
species
Africanelephant brain_wt 5712.0
Africanelephant body_wt 6654.0
Africangiantpouchedrat brain_wt 6.6
Africangiantpouchedrat body_wt 1.0

Mammal data: wide layout

Here’s a third possible layout for the mammal brain-body weight data:

species Africanelephant Africangiantpouchedrat ArcticFox Arcticgroundsquirrel
measurement
body_wt 6654.0 1.0 3.385 0.92
brain_wt 5712.0 6.6 44.500 5.70

GDP growth data: wide layout

Here’s another example: World Bank data on annual GDP growth for 264 countries from 1961 – 2019.

Country Name Country Code 2009 2010 2011
0 Aruba ABW -10.519749 -3.685029 3.446055
1 Afghanistan AFG 21.390528 14.362441 0.426355
2 Angola AGO 0.858713 4.403933 3.471976
3 Albania ALB 3.350067 3.706892 2.545322
4 Andorra AND -5.302847 -1.974958 -0.008070

GDP growth data: long layout

Here’s an alternative layout for the annual GDP growth data:

year growth_pct
Country Name
Afghanistan 2009 21.390528
Aruba 2009 -10.519749
Afghanistan 2010 14.362441
Aruba 2010 -3.685029
Afghanistan 2011 0.426355
Aruba 2011 3.446055

SB weather data: long layouts

A third example: daily minimum and maximum temperatures recorded at Santa Barbara Municipal Airport from January 2021 through March 2021.

STATION TMAX TMIN MONTH DAY YEAR
0 USW00023190 65 37 1 1 2021
1 USW00023190 62 38 1 2 2021
2 USW00023190 60 42 1 3 2021

SB weather data: wide layout

Here’s a wide layout for the SB weather data:

DAY 1 2 3 4
MONTH type
1 TMAX 65.0 62.0 60.0 72.0
TMIN 37.0 38.0 42.0 43.0
2 TMAX 66.0 67.0 69.0 63.0
TMIN 45.0 40.0 44.0 37.0
3 TMAX 68.0 66.0 59.0 62.0

UN development data: multiple tables

A final example: United Nations country development data organized into different tables according to variable type.

Here is a table of population measurements:

total_pop urban_pct_pop pop_under5 pop_15to64 pop_over65
country
Afghanistan 38.0 25.8 5.6 20.9 1.0
Albania 2.9 61.2 0.2 2.0 0.4

And here is a table of a few gender-related variables:

gender_inequality parliament_pct_women labor_participation_women labor_participation_men
country
Norway 0.045 40.8 60.4 67.2
Ireland 0.093 24.3 56.0 68.4

UN development data: one table

Here are both tables merged by country:

total_pop urban_pct_pop pop_under5 pop_15to64 pop_over65 gender_inequality parliament_pct_women labor_participation_women labor_participation_men
country
Afghanistan 38.0 25.8 5.6 20.9 1.0 0.655 27.2 21.6 74.7
Albania 2.9 61.2 0.2 2.0 0.4 0.181 29.5 46.7 64.6
Algeria 43.1 73.2 5.0 27.1 2.8 0.429 21.5 14.6 67.4

UN development data: one (longer) table

And here is another arrangement of the merged table:

gender_variable gender_value population_variable population_value
country
Afghanistan gender_inequality 0.655 total_pop 38.0
Albania gender_inequality 0.181 total_pop 2.9
Algeria gender_inequality 0.429 total_pop 43.1
Andorra gender_inequality NaN total_pop 0.1
Angola gender_inequality 0.536 total_pop 31.8

What are the differences?

In short, the alternate layouts differ in three respects:

  1. Rows
  2. Columns
  3. Number of tables

How to choose?

Return to one of the examples and review the different layouts with your neighbor.

  1. List a few advantages and disadvantages for each layout.
  2. Which do you prefer and why?

Few organizational constraints

It’s surprisingly difficult to articulate reasons why one layout might be preferable to another.

  • Usually the choice of layout isn’t principled
  • Idiosyncratic: two people are likely to make different choices

As a result:

  • Few widely used conventions
  • Lots of variability ‘in the wild’
  • Datasets are often organized in bizarre ways

Form and representation

Because of the wide range of possible layouts for a dataset, and the variety of choices that are made about how to store data, data scientists are constantly faced with determining how best to reorganize datasets in a way that facilitates exploration and analysis.

Broadly, this involves two interdependent choices:

  • Choice of representation: how to encode information.
    • Example: parse dates as ‘MM/DD/YYYY’ (one variable) or ‘MM’, ‘DD’, ‘YYYY’ (three variables)?
    • Example: use values 1, 2, 3 or ‘low’, ‘med’, ‘high’?
    • Example: name variables ‘question1’, ‘question2’, …, or ‘age’, ‘income’, …?
  • Choice of form: how to display information
    • Example: wide table or long table?
    • Example: one table or many?

Tidy data

The tidy data standard is a principled way of organizing tabular data. It has two main advantages:

  1. Facilitates workflow by establishing a consistent dataset structure.
  2. Principles are designed to make transformation, exploration, visualization, and modeling easy.

Semantics and structure

“Tidying your data means storing it in a consistent form that matches the semantics of the dataset with the way it is stored.” Wickham and Grolemund, R for Data Science, 2017.

A dataset is a collection of values.

  • the semantics of a dataset are the meanings of the values

  • the structure of a dataset is the arrangement of the values

Data semantics

To introduce some general vocabulary, each value in a dataset is

  • an observation
  • of a variable
  • taken on an observational unit.

Units, variables, and observations

total_pop urban_pct_pop
country
Afghanistan 38.0 25.8
Albania 2.9 61.2
  • An observational unit is the entity measured.
    • Above, country
  • A variable is an attribute measured on each unit.
    • Above, total population and urban percentage
  • An observation is a collection of measurements taken on one unit.
    • Above, 38.0 and 25.8

Identifying units, variables, and observations

Let’s do an example. Here’s one record from the GDP growth data:

year growth_pct
Country Name
Afghanistan 2010 14.362441

Above, the values -13.605441 and 1961 are observations of the variables GDP growth and year recorded for the observational unit Algeria.

Your turn

What are the units, variables and observations?

DAY 1 2 3 4
MONTH type
1 TMAX 65.0 62.0 60.0 72.0
TMIN 37.0 38.0 42.0 43.0
2 TMAX 66.0 67.0 69.0 63.0
TMIN 45.0 40.0 44.0 37.0

Think about it, then confer with your neighbor.

Data structure

Data structure refers to the form in which it is stored.

Tabular data is arranged in rows and columns.

As we saw, there are multiple structures – arrangements of rows and columns – available to represent any dataset.

The tidy standard

The tidy standard consists in matching semantics and structure. A dataset is tidy if:

  1. Each variable is a column.
  2. Each observation is a row.
  3. Each table contains measurements on only one type of observational unit.

Tidy data.

Tidy or messy?

Let’s revisit some of our examples of multiple layouts.

Country Name Country Code 2009 2010 2011
0 Aruba ABW -10.519749 -3.685029 3.446055
1 Afghanistan AFG 21.390528 14.362441 0.426355
2 Angola AGO 0.858713 4.403933 3.471976

We can compare the semantics and structure for alignment:

Semantics Structure
Observations Annual records Rows Countries
Variables GDP growth and year Columns Value of year
Observational units Countries Tables Just one

Rules 1 and 2 are violated, since column names are values (of year), not variables. Not tidy.

Tidy or messy?

year growth_pct
Country Name
Afghanistan 2009 21.390528
Aruba 2009 -10.519749
Afghanistan 2010 14.362441
Aruba 2010 -3.685029

Comparison of semantics and structure:

Semantics Structure
Observations Annual records Rows Annual records
Variables GDP growth and year Columns GDP growth and year
Observational units Countries Tables Just one

All three rules are met: rows are observations, columns are variables, and there’s one unit type and one table. Tidy.

Tidy or messy?

STATION TMAX TMIN MONTH DAY YEAR
0 USW00023190 65 37 1 1 2021
1 USW00023190 62 38 1 2 2021
2 USW00023190 60 42 1 3 2021

Try this one on your own. Then compare with your neighbor.

  1. Identify the observations and variables
  2. What are the observational units?

Tidy or messy?

In undev1 and undev2:

total_pop urban_pct_pop pop_under5 pop_15to64 pop_over65
country
Afghanistan 38.0 25.8 5.6 20.9 1.0
Albania 2.9 61.2 0.2 2.0 0.4
gender_inequality parliament_pct_women labor_participation_women labor_participation_men
country
Norway 0.045 40.8 60.4 67.2
Ireland 0.093 24.3 56.0 68.4

Here there are multiple tables. To discuss:

  • Are the observational units the same or different?
  • Based on your answer above, is the data tidy or not?

Common messes

“Well, here’s another nice mess you’ve gotten me into” – Oliver Hardy

These examples illustrate some common messes:

  1. Columns are values, not variables
    • GDP data: columns are 1961, 1962, …
  2. Multiple variables are stored in one column
    • Mammal data: weight column contains both body and brain weights
  3. Variables or values are stored in rows and columns
    • Weather data: date values are stored in rows and columns, each column contains both min and max temperatures
  4. Measurements on one type of observational unit are divided into multiple tables.
    • UN development data: one table for population statistics and a separate table for gender statistics.

Tidying operations

These common messes can be cleaned up by some simple operations:

  • melt
    • reshape a dataframe from wide to long format
  • pivot
    • reshape a dataframe from long to wide format

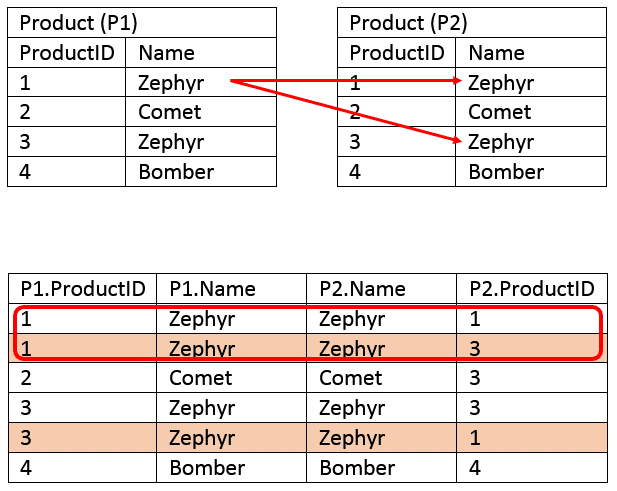

  • merge
    • combine two dataframes row-wise by matching the values of certain columns

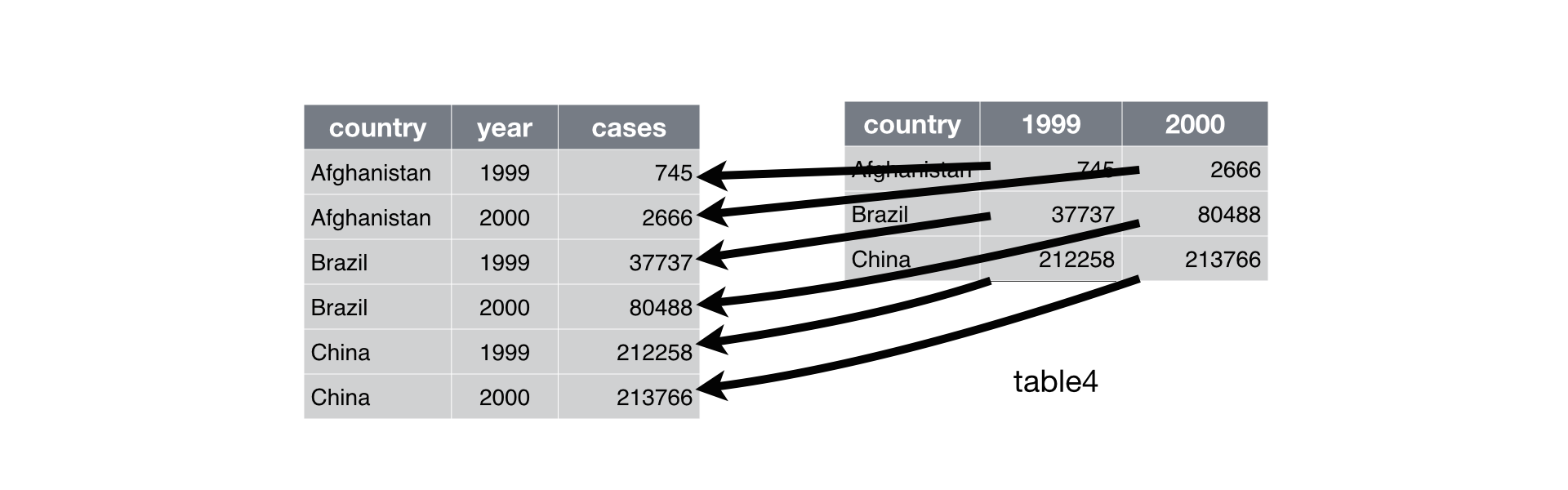

Melt

Melting resolves the problem of having values stored as columns (common mess 1).

Melt

Country Name Country Code 1961 1962 1963 1964 1965 1966 1967 1968 ... 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
0 Aruba ABW NaN NaN NaN NaN NaN NaN NaN NaN ... -3.685029 3.446055 -1.369863 4.198232 0.300000 5.700001 2.100000 1.999999 NaN NaN
1 Afghanistan AFG NaN NaN NaN NaN NaN NaN NaN NaN ... 14.362441 0.426355 12.752287 5.600745 2.724543 1.451315 2.260314 2.647003 1.189228 3.911603

2 rows × 61 columns

# in pandas
gdp1.melt(
    id_vars = ['Country Name', 'Country Code'], # which variables do you want to retain for each row? .
    var_name = 'Year', # what do you want to name the variable that will contain the column names?
    value_name = 'GDP Growth', # what do you want to name the variable that will contain the values?
).head(2)
Country Name Country Code Year GDP Growth
0 Aruba ABW 1961 NaN
1 Afghanistan AFG 1961 NaN

Pivot

Pivoting resolves the issue of having multiple variables stored in one column (common mess 2). It’s the inverse operation of melting.

Pivot

measurement weight
species
Africanelephant brain_wt 5712.0
Africanelephant body_wt 6654.0
Africangiantpouchedrat brain_wt 6.6
Africangiantpouchedrat body_wt 1.0
# in pandas
mammal2.pivot(
    columns = 'measurement', # which variable(s) do you want to send to new column names?
    values = 'weight' # which variable(s) do you want to use to populate the new columns?
).head(2)
measurement body_wt brain_wt
species
Africanelephant 6654.0 5712.0
Africangiantpouchedrat 1.0 6.6

Pivot and melt

Common mess 3 is a combination of messes 1 and 2: values or variables are stored in both rows and columns. Pivoting and melting in sequence can usually fix this.

DAY 1 2 3 4 5 6 7 8 9 10 ... 22 23 24 25 26 27 28 29 30 31
MONTH type
1 TMAX 65.0 62.0 60.0 72.0 61.0 71.0 73.0 79.0 71.0 67.0 ... 61.0 59.0 65.0 55.0 57.0 54.0 55.0 55.0 58.0 63.0
TMIN 37.0 38.0 42.0 43.0 40.0 39.0 38.0 36.0 39.0 37.0 ... 41.0 40.0 38.0 44.0 40.0 48.0 49.0 42.0 37.0 37.0
2 TMAX 66.0 67.0 69.0 63.0 66.0 68.0 60.0 57.0 59.0 61.0 ... 75.0 75.0 70.0 66.0 69.0 76.0 68.0 NaN NaN NaN
TMIN 45.0 40.0 44.0 37.0 38.0 38.0 38.0 49.0 49.0 41.0 ... 37.0 39.0 41.0 39.0 36.0 43.0 38.0 NaN NaN NaN
3 TMAX 68.0 66.0 59.0 62.0 67.0 69.0 60.0 69.0 65.0 58.0 ... 71.0 72.0 67.0 65.0 63.0 72.0 73.0 77.0 NaN NaN
TMIN 37.0 36.0 36.0 37.0 39.0 43.0 47.0 47.0 47.0 43.0 ... 50.0 49.0 41.0 44.0 40.0 41.0 41.0 42.0 NaN NaN

6 rows × 31 columns

Pivot and melt

weather3.melt(
    ignore_index = False,
    var_name = 'day',
    value_name = 'temp'
).head()
day temp
MONTH type
1 TMAX 1 65.0
TMIN 1 37.0
2 TMAX 1 66.0
TMIN 1 45.0
3 TMAX 1 68.0
weather3.melt(
    ignore_index = False,
    var_name = 'day',
    value_name = 'temp'
).reset_index().pivot(
    index = ['MONTH', 'day'],
    columns = 'type',
    values = 'temp'
).reset_index().rename_axis(columns = {'type': ''}).head()
MONTH day TMAX TMIN
0 1 1 65.0 37.0
1 1 2 62.0 38.0
2 1 3 60.0 42.0
3 1 4 72.0 43.0
4 1 5 61.0 40.0

Merge

Merging resolves the issue of storing observations or variables on one unit type in multiple tables (mess 4). The basic idea is to combine by matching rows.

Merge

The code below combines columns in each table by matching rows based on country.

pd.merge(undev1, undev2, on = 'country').head(4)
total_pop urban_pct_pop pop_under5 pop_15to64 pop_over65 gender_inequality parliament_pct_women labor_participation_women labor_participation_men
country
Afghanistan 38.0 25.8 5.6 20.9 1.0 0.655 27.2 21.6 74.7
Albania 2.9 61.2 0.2 2.0 0.4 0.181 29.5 46.7 64.6
Algeria 43.1 73.2 5.0 27.1 2.8 0.429 21.5 14.6 67.4
Andorra 0.1 88.0 NaN NaN NaN NaN 46.4 NaN NaN

Merge

There are various rules for exactly how to merge, but the general syntactical procedure to merge dataframes df1 and df2 is this.

  • Specify an order: merge(df1, df2) or merge(df2, df1).

  • Specify keys: the shared columns to use for matching rows of df1 with rows of df2.

    • for example, merging on date will align rows in df2 with rows of df1 that have the same value for date

  • Specify a rule for which rows to return after merging

    • keep all rows with key entries in df1, drop non-matching rows in df2 (‘left’ join)
    • keep all rows with key entries in df2 drop non-matching rows in df1 (‘right’ join)
    • keep all rows with key entries in either df1 or df2, inducing missing values (‘outer’ join)
    • keep all rows with key entries in both df1 and df2 (‘inner’ join)

Next time

Transformations of tabular data

  • Slicing and filtering
  • Defining new variables
  • Vectorized operatioons
  • Aggregation and grouping
